CCD Laser Engraving Cutting Machine
CCD Laser Engraving Cutting Machine
Printed Acrylic Label CCD Camera Laser Cutting Machine 1300*900mm

Brief Introduction:

Model: UG-1390L-CCD
RDV6445G visual positioning cutting
CCD camera USB port
Also for woven label embroidery label

INQUIRY NOW

Applications

Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.


Widely applied in the field of advertising industry, decoration, furniture, model manufacturing, and handcraft industry for the fine engraving, cutting and hollowing out on almost all non- metallic materials with all kinds of characters, graphs, images, trademarks and so on.

Materials Can work with: Organic glass, acrylic board (the paulownia,  lightwood), wood products, bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.


Features

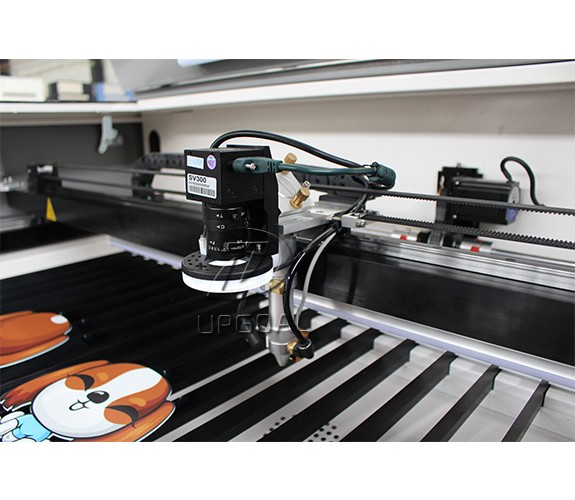

CCD Camera

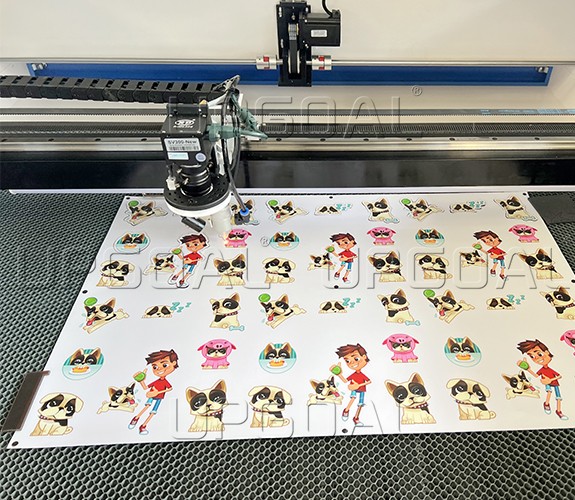

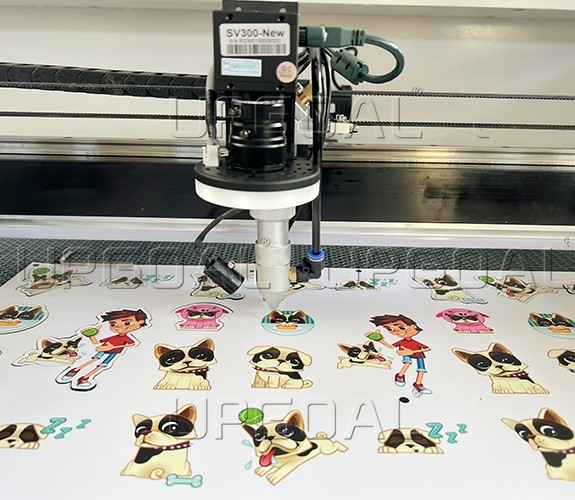

Machine with RUIDA CCD Camera auto positioning, can do visual positioning, trademark cutting, image analysis. support feature recognition position positioning and MARK point auxiliary position positioning function,  improves the working efficiency.

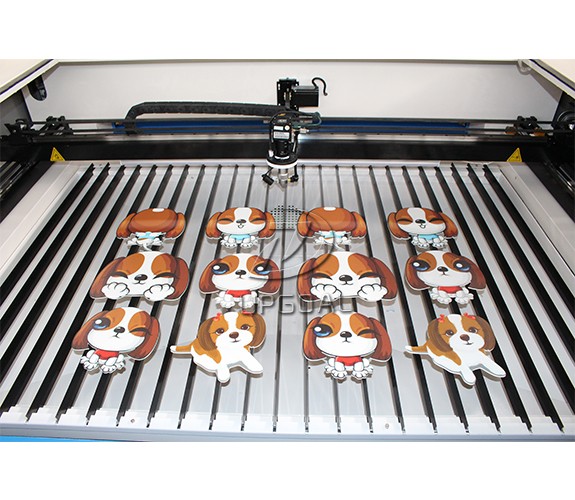

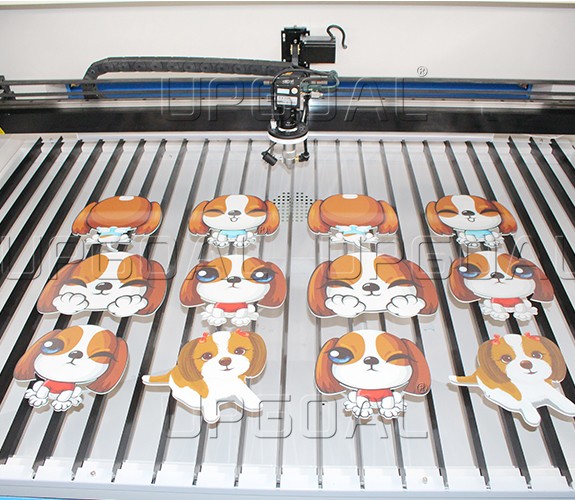

Multi-graphic positioning and cutting at any angle, automatic identification of defective products, can achieve the effect of cutting along the edge, no yellow, no black, no burn, multiple graphics positioning and cutting at the same time

Laser Head

Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.

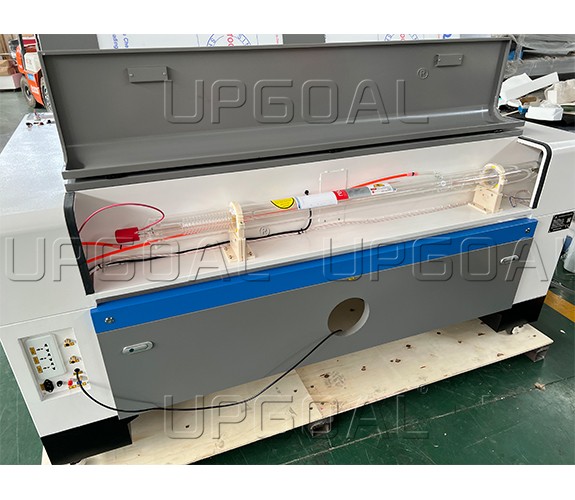

Laser Tube

Adopted high quality EFR F4 100W  Co2 laser tube,  long working time time and stable

Working Table

Honey Comb Table: applicable to various soft materials with good adsorption effect and low reflection ratio.

Knife Strip Table:  With oxidation treatment and low reflection ratio Ensured cutting quality

Auto Lifting Table for more thickness materials:Maximum Loading 50kgs with 200mm up-down distance.

Beam Path System

Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.

Motion System

Imported High precision, low friction force and stand wear and Taiwan CSKlinear square guide rails and blocks with 3M belt ensured stable transmission, lower noise

Operation System

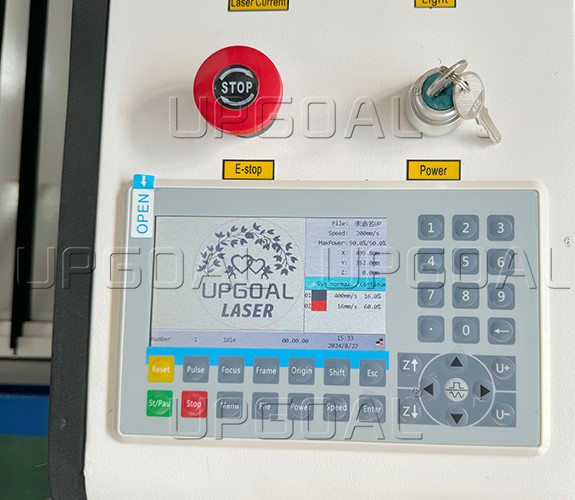

Advanced USB port RuiDaRDV6445G small vision laser cutting engraving control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .

With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.

Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.

Rationalized placement of the electronic parts. Optimized heat dissipation effect.

Cooling System

Industrial chiller CW-5000, ensuring the laser tube long time continuous working



Effective working area

1300*900mm

Laser Type

Co2 sealed-off laser tube

Laser tube power

100W, EFR, F4 model

Working table

Honey comb and knife strip working table

Lifting table

Automatically up and down 200mm

Focusing

Auto

Driver mode

3 phases stepper motor and Driver, Yako brand

Guide rail

Linear square guide rail ( CSK,Taiwan)

Transmission

Belt transmission

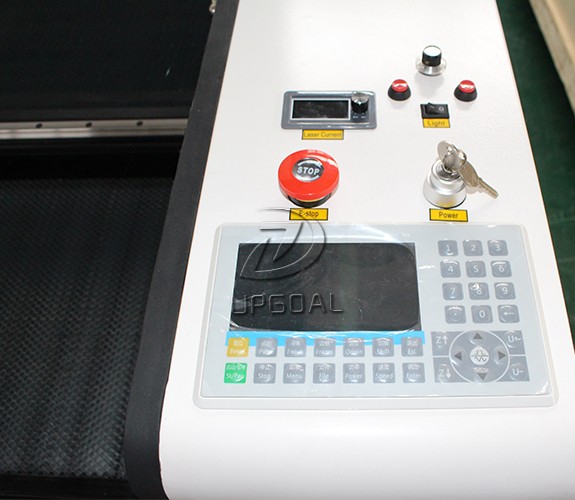

Control panel

English

Laser output control

1-100% software setting

Engraving speed

0-60000mm/min

Cutting speed

0-10000mm/min

Control system

RuiDa RDV6445G small vision laser cutting engraving control system

CCD camera

RuIDa SV300, USB port

Design software when delivery

CorelDraw

Control panel

DSP offline

Resolution accuracy

< 0.01mm

Location precision

< 0.01mm

Highest scanning accuracy

2500DPI

Type of cooling

Industrial chiller CW-5000 cooling

Water protection system

Yes

Focus

Auto focus

Blow-off system

Air pump and air blower

Working temperature

0-45 °C

Operating humidity

5-95% (without condensed water)

Supporting picture format

PLT、DST、DXF、BMP, DWG、AI、LAS,etc

Voltage

AC 220V/110V, 50/60Hz, single phase

Certificate

CE/FDA
